Automatic screw machine

You are here：Home >> Products >> Automation Equipment >> Automatic screw mach...

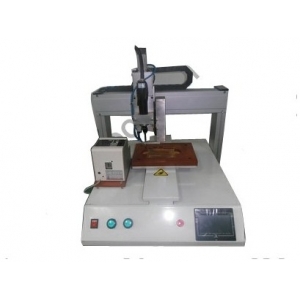

Name：Automatic Screw Driving Machine ASD-4412-S/T

Model：ASD-4412-S/T

Description Parameter

Automatic Screw Machine Uses
Widely used in small appliances, electronics, instrumentation, LED, communications industry mobile phones, tablet computers, notebook computers, health, mouse, lighting, printers, circuit boards and other small products lock screw.

Automatic Screw Machine Features
1 device desktop can be easily put into the production line, the standard single-head dual Y-axis work platforms;

2 double Y-axis automatic alternate operating platform, the machine can not stop working, safe and convenient, fast and high efficiency.;

3 screws automatic entire column, automatic feeding, safe noise, efficiency up to 60 per minute;

4 screw feeding methods: feeder track can freely adjust the feed screw according to the size of the feed is divided into: a.
True b blowing air suction type;

5 XYZ axes are imported stepper motor + Ball + precision linear slide rotation, to ensure the accuracy and stability of the automatic locking screw machine;

6 device control using PLC + HMI, high efficiency lock screw, all Chinese programming interface, easy to understand.

Specifications:

Moving Range	X軸	400 mm
	Y軸	400 mm
	Z軸	120 mm
Moving Speed	X軸	400 mm/sec
	Y軸	400 mm/sec
	Z軸	200 mm/sec
Positioning Accuracy		±0.02 mm
Air Pressure		4-5 kg/cm²
Drive Motor		Servo or Stepper
Power		300W
